Geothermal heat pump cost is usually driven more by the work below ground than by the heat pump installed inside the home. The equipment must be matched to a buried loop system that exchanges heat with stable ground temperatures, and that loop may require vertical drilling, horizontal excavation, or access to a suitable body of water. As a result, two similar homes can receive very different proposals. Before comparing geothermal bids, separate the price of the indoor unit from the cost of loop installation, electrical work, duct modifications, permits, and site restoration. Then compare projected operating costs and available incentives against the larger upfront investment.
An air-source heat pump exchanges heat with outdoor air. A geothermal, or ground-source, heat pump exchanges heat with the earth through a closed loop of buried piping filled with a heat-transfer fluid. The indoor heat pump cabinet is important, but it cannot operate without a properly designed loop field.
Installing that loop is construction work as well as HVAC work. The contractor may need to bring drilling rigs onto the property, excavate trenches, work around utilities and landscaping, manage soil or rock conditions, and restore disturbed areas afterward. Access constraints can matter as much as lot size. A large yard is not automatically easy to excavate if it has mature trees, retaining walls, septic components, irrigation lines, or limited entry for equipment.
This is why a geothermal heat pump cost estimate should never be judged by the equipment line alone. A lower equipment price can be outweighed by a difficult drilling plan, while a more expensive indoor system may be part of a sensible proposal if it includes a durable, well-designed loop field and necessary home upgrades.
A complete quote should identify the major parts of the project rather than presenting one unexplained total. The scope varies by home, but the categories below help homeowners see where costs arise and compare proposals on equal terms.
| Cost Component | What It Covers | Why It Can Vary | What to Ask the Contractor |
|---|---|---|---|
| Indoor heat pump equipment | Heat pump, controls, circulation components, and sometimes a domestic hot-water accessory | System capacity, configuration, efficiency features, and accessory choices | Which equipment is included, and what heating and cooling loads was it selected to meet? |
| Ground loop field | Pipe, fittings, headers, fluid, trenching or boreholes, and loop connections | Loop type, soil and rock conditions, drilling depth, property access, and loop design | What loop configuration is proposed, and what site assumptions support it? |
| Distribution system | Ductwork changes, air handler connections, piping, pumps, registers, or zoning work | Condition and sizing of existing ducts, airflow needs, and home layout | Will existing ducts be tested and modified, or is a new distribution system included? |
| Electrical work | Dedicated circuits, disconnects, panel changes, wiring, and controls | Available panel capacity and local electrical requirements | Does the quote include any panel upgrade that may be needed? |
| Permits and restoration | Permits, inspections, utility locating, landscaping repair, spoil removal, and cleanup | Local rules and the amount of disturbance created by the loop installation | Who is responsible for permits, surface restoration, and unexpected site conditions? |
The ground loop is normally designed to last much longer than the indoor heat pump. That long life can support the investment, but it also makes correct sizing and installation especially important. Cutting scope on loop design to reduce the initial proposal may create comfort, efficiency, or service problems that are costly to address after the yard has been restored.
There is no single “standard” geothermal loop. The most appropriate approach depends on the site, available land, subsurface conditions, access for machinery, local permitting, and the home’s heating and cooling load.
| Loop Type | Best Fit | Main Cost Driver | Primary Limitation |
|---|---|---|---|
| Vertical closed loop | Smaller lots or properties with limited open space | Drilling depth, rock, drilling access, and borehole construction | Specialized drilling can be a substantial upfront expense |
| Horizontal closed loop | Properties with enough clear land for trenches | Excavation volume, soil conditions, and restoration work | Requires significant usable yard area and access for excavation equipment |
| Pond or lake loop | Properties with a suitable, accessible water body | Water-body conditions, anchoring, piping route, and approvals | Only practical where site conditions and regulations allow it |
| Open-loop system | Some sites with an adequate water source and an acceptable discharge method | Water quality, wells, pumps, treatment needs, and permitting | Water-management requirements can make it unsuitable or more complex |

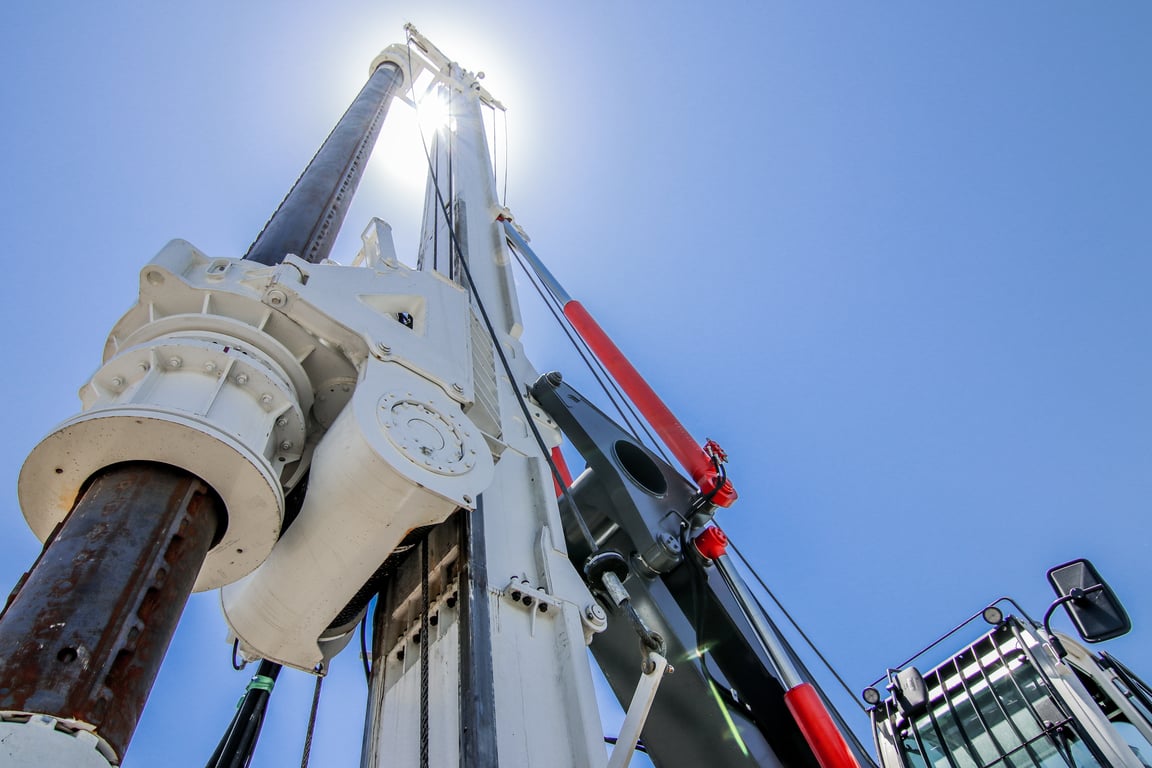

Vertical closed loops use one or more deep boreholes. They are often considered when horizontal trenches would consume too much of the property or conflict with landscaping and site features. Their surface footprint can be smaller, but drilling conditions below ground are a major unknown until the project is evaluated.
Hard rock, difficult access, overhead obstructions, steep grades, and the need to protect nearby structures can all affect the drilling plan. Ask whether the proposal accounts for expected geology and what happens if conditions differ from the contractor’s initial assumptions. A clear change-order process is more useful than a low quote built on vague assumptions.
Horizontal loops are buried in trenches or excavated areas. They may avoid deep drilling, but they require enough clear land to install pipe at the required depth and spacing. Driveways, patios, trees, underground utilities, drainage systems, and future landscaping plans all need consideration.
Homeowners should include restoration in the comparison. A proposal that covers excavation but excludes reseeding, irrigation repair, hardscape repair, or removal of excess soil may not represent the final project cost.
A pond loop can reduce excavation on properties with the right water feature, but suitability depends on the water body, access, local requirements, and a sound engineering plan. Open-loop systems draw from a water source and return or discharge water elsewhere. They can involve water quality concerns, pump maintenance, discharge restrictions, and well-related requirements.
Do not assume either option is a bargain because it appears to require less digging. Verify permits, operating requirements, maintenance responsibilities, and whether the proposed design is acceptable for the property over the long term.
Geothermal contractors need information that a conventional HVAC replacement often does not require. The house itself matters, but so does the site around it and the ground underneath it.
Geothermal proposals are difficult to compare when one contractor includes only a broad allowance for drilling and another provides a more complete site plan. The lowest initial number may exclude work that becomes necessary once excavation or drilling begins. Focus on scope, assumptions, and accountability before focusing on the bottom line.
A geothermal system uses relatively stable underground temperatures rather than relying entirely on hot summer air or freezing winter air. That can reduce the energy required for heating and cooling in an appropriate home. The amount saved, however, depends on local utility rates, the home’s insulation and air sealing, thermostat settings, existing system efficiency, and the system’s actual design and installation quality.
A contractor’s savings estimate should be treated as a planning tool, not a guarantee. Ask what assumptions it uses for energy prices, weather, indoor temperatures, equipment operation, and the home’s baseline consumption. If the estimate compares geothermal with an aging or failing system, also compare it with the cost and performance of a modern air-source heat pump or other realistic replacement option.
For some homeowners, the case for geothermal is strongest when a conventional system needs replacement and the property is already undergoing major excavation, new construction, landscaping, or site work. For others, the ground-loop expense may make a high-efficiency air-source heat pump the more practical choice, especially where space, access, or budget is limited.
| Consideration | Geothermal Heat Pump | Air-Source Heat Pump |
|---|---|---|
| Upfront installation | Usually higher because of the ground loop and site work | Usually lower because no buried loop is required |
| Property impact | May involve drilling, trenching, and landscape restoration | Requires outdoor equipment placement but limited excavation |
| Heating source | Uses stable ground temperatures through the loop field | Uses outdoor air and performance varies with weather conditions |
| Best fit | Owners planning long-term occupancy with a suitable site and budget | Owners seeking lower initial cost or a simpler replacement project |
| Key verification | Loop design, site conditions, contractor drilling experience, and total installed scope | Cold-weather performance, electrical needs, backup heat approach, and equipment sizing |
Geothermal is not automatically the better financial choice simply because it is highly efficient. It is best evaluated as a long-term property investment. Air-source heat pumps can offer an effective electrified heating and cooling upgrade with less site disruption, while geothermal can be compelling where the ground loop is practical and the owner expects to benefit from the system over many years.
Incentives can materially change the net geothermal heat pump cost, but they should not be assumed. Programs differ by country, state or province, utility, and local jurisdiction. Eligibility can depend on the equipment, installation date, installer documentation, property type, income rules, or whether funding remains available.
Before signing a contract, ask for the exact equipment model information and documentation required for any incentive you plan to use. Verify details through the relevant tax authority, utility, energy office, or program administrator rather than relying on a sales estimate. If financing is part of the decision, compare the total repayment cost with expected utility savings rather than looking only at the monthly payment.
Geothermal can be a strong fit for a homeowner who expects to remain in the house for a long time, has a site that can accommodate a properly designed loop, and can manage the higher installation investment. It may also suit new construction, major renovations, or properties where excavation is already planned, since coordinating site work can reduce disruption.
Consider an alternative if the property has difficult equipment access, limited usable land, uncertain water or drilling conditions, or a budget that cannot absorb construction-related surprises. A well-designed air-source heat pump, paired with insulation, air sealing, duct improvements, and suitable controls, can often deliver meaningful comfort and efficiency gains without a ground loop.
A conventional replacement generally changes equipment at the house, while geothermal adds a permanent underground heat-exchange system. Drilling or excavation, loop piping, site access, permits, and restoration can make the installation much more involved. The indoor heat pump is only one part of the project.
Not always. Vertical loops involve drilling, while horizontal loops require substantial open land and excavation. The more affordable option depends on access, soil or rock conditions, lot layout, utility locations, landscaping, and local contractor availability.
Possibly, but the ducts should be evaluated rather than assumed adequate. The contractor should check duct sizing, leakage, airflow, return-air paths, and register placement. Repairs or modifications may be needed to obtain the comfort and efficiency expected from the new system.
A useful quote explains the proposed loop type, equipment capacity, load calculation, site assumptions, included electrical and duct work, permits, restoration, and warranty responsibilities. Be cautious with a proposal that offers a low total but provides little detail about drilling, excavation, or what happens if site conditions are different from expected.
It can reduce heating and cooling energy use in a properly designed home, but savings vary widely. Local energy rates, weather, insulation, duct condition, system controls, and the efficiency of the equipment being replaced all affect the result. Review projected savings alongside your actual utility history and the contractor’s assumptions.
A small yard may still work with a vertical loop if drilling equipment can access the property and local conditions allow it. Limited access, underground obstacles, overhead lines, and nearby structures can complicate the plan. A site assessment is necessary before treating geothermal as feasible.
The right way to assess geothermal heat pump cost is to view it as an HVAC project plus a site-development project. Obtain detailed, site-specific proposals, confirm what the ground-loop work includes, and compare the result with other heating and cooling upgrades on both upfront and long-term terms. If the loop design, home load, and operating-cost assumptions are clear, you can judge whether the larger initial investment fits your property and ownership plans.
