Ground source heat pump cost is usually much higher than replacing a furnace and air conditioner or installing an air-source heat pump because the project includes an underground heat-exchange loop. The indoor heat pump is only part of the purchase. Drilling boreholes, trenching, routing pipe, restoring the site, and adapting the home’s distribution system can account for much of the final price. For homeowners who expect to stay in the house for many years, have a suitable site, and want lower heating and cooling energy use, the higher initial investment may be worthwhile. The right decision depends on the property, existing HVAC equipment, utility costs, available incentives, and the quality of the installation proposal.
A ground-source, or geothermal, heat pump moves heat between the home and the stable temperature below the ground. Unlike an air-source heat pump, it does not rely on an outdoor unit exchanging heat with very hot summer air or cold winter air. Instead, it circulates fluid through buried piping, called a ground loop, then uses the heat pump indoors to provide heating and cooling.
The underground work is why the installed cost is substantially higher. A standard HVAC replacement generally involves removing existing equipment, setting new equipment, connecting electrical and refrigerant lines, and possibly making duct repairs. A geothermal installation may also require a drilling crew or excavation equipment, loop piping, pressure testing, grouting where applicable, trenching from the loop to the house, and repair of disturbed landscaping or hardscape.
That does not mean every geothermal project has the same cost profile. Two houses with similar square footage can receive very different proposals because the land, soil, access, heating load, and existing HVAC setup are different.
When comparing estimates, do not focus only on the headline figure. Ask each contractor to identify the work included and excluded. A lower proposal can appear attractive because it leaves out electrical upgrades, ductwork, site restoration, permit costs, or removal of old equipment.
| Cost Component | What It Covers | Why It Can Vary | What to Confirm |
|---|---|---|---|
| Ground loop | Drilling or trenching, pipe, fittings, grout or backfill, and pressure testing | Loop type, soil and rock conditions, drilling depth, access, and property size | Loop design, testing method, warranty, and restoration scope |
| Indoor heat pump | Heat pump unit, controls, circulation components, and condensate management | Required capacity, efficiency options, single-stage or variable-capacity design | Model information, capacity selection, and labor warranty |
| Distribution system | Duct connections or hydronic equipment such as buffer tanks and pumps | Condition and size of existing ducts or piping; zoning needs | Whether duct sealing, resizing, or new terminals are included |
| Electrical work | Disconnects, breakers, wiring, and possible panel upgrades | Existing service capacity and local code requirements | Who handles permits and whether panel work is priced separately |
| Site work | Access preparation, trenching to the home, cleanup, and landscape repair | Driveways, trees, fences, irrigation, slopes, and limited equipment access | Exactly what will be restored and what remains the homeowner’s responsibility |
The most important line item is often the loop field, not the heat pump itself. A contractor cannot accurately treat it as a simple flat-rate add-on without understanding the site. A proper proposal should reflect a load calculation for the house and a loop design suited to local ground conditions.
Most residential projects use either a horizontal closed loop or a vertical closed loop. An open-loop design, which uses groundwater where suitable and permitted, is another possibility in some locations. Each approach has different land, water, and installation requirements.
| Loop Type | Best Fit | Main Cost Driver | Key Limitation |
|---|---|---|---|
| Horizontal closed loop | Homes with ample open land and workable digging access | Excavation, trench length, and site restoration | May be impractical on small lots or heavily landscaped sites |

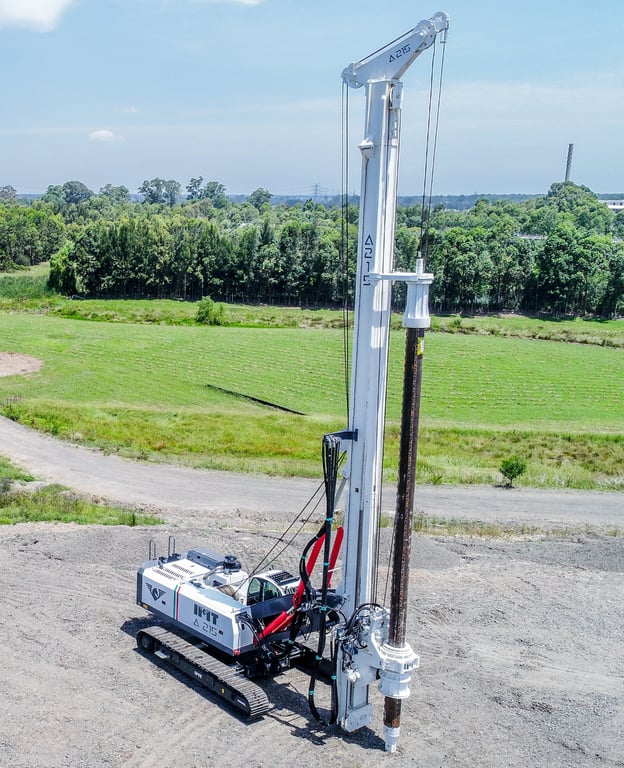

| Vertical closed loop | Smaller lots or properties where open land is limited | Drilling equipment, borehole depth, geology, and grouting | Often carries a higher upfront installation cost |
| Pond or lake loop | Properties with an appropriate water body and a viable design | Pipe installation, anchoring, access, and permitting considerations | Only works where the water body and local requirements support it |
| Open loop | Sites with reliable, suitable groundwater and allowable discharge options | Well work, water-quality considerations, and discharge arrangement | Water chemistry, maintenance, and local rules can rule it out |
Horizontal loops can reduce drilling expense, but they are not automatically the cheaper choice. A large yard may still have obstacles such as mature trees, septic systems, buried utilities, irrigation lines, steep grades, or poor access for excavation equipment. Vertical loops limit surface disruption after installation, yet drilling through difficult rock or reaching the property with a drill rig can raise the price.
A pond loop can look appealing on paper, but it requires a suitable water body, an engineered design, and a clear understanding of permitting and ownership issues. An open loop should not be chosen solely for a lower initial quote. Water quality, well performance, and discharge requirements may affect reliability and maintenance.
Ground source heat pump cost is primarily a site-specific construction cost. Before asking contractors for final pricing, expect them to evaluate the home and the land rather than estimating from square footage alone.
Geothermal proposals are difficult to compare if one contractor provides a short equipment list and another provides a detailed design. Ask for a written scope that makes the differences visible. The goal is not to force identical bids; it is to understand what each company has assumed and what could become a change order later.
Lower operating cost is a major reason homeowners consider a ground-source system, but it should be evaluated carefully. The expected savings depend on what the geothermal system replaces, how efficiently the home uses energy now, local electricity prices, current fuel prices, thermostat habits, and the condition of the ductwork or hydronic distribution system.
A ground-source heat pump can provide both heating and cooling, which may simplify replacement planning for a home with an aging furnace and air conditioner. It may also reduce reliance on combustion equipment in the house. However, homeowners should not assume that every project has a short payback period. A high-cost vertical loop installation on a modest-load home may take much longer to recover than a project with an easy loop installation and expensive existing heating fuel.
Compare the geothermal proposal with the realistic alternative, not merely the cost of a single replacement appliance. If the conventional option would require a furnace, air conditioner, new outdoor pad, electrical work, duct repairs, and eventual replacement of both systems, include those items. Then compare expected maintenance, fuel and electricity use, equipment life, and the likely period you will own the home.
Ask the contractor to explain their operating-cost assumptions in plain language. You should be able to see the proposed system capacity, estimated annual energy use, assumed utility rates, and any auxiliary heat assumptions. Treat a savings estimate as a planning tool, not a guarantee. Actual use changes with weather, occupancy, insulation improvements, and energy prices.
Tax credits, utility rebates, state programs, and local incentives may reduce the homeowner’s net cost, but programs can have eligibility rules, funding limits, equipment requirements, installation deadlines, and documentation requirements. Do not assume that a contractor’s estimate includes every incentive or that an advertised incentive applies to your project.
Before committing, confirm the following with the relevant program administrator or a qualified tax professional where appropriate:
It is sensible to compare proposals both before and after incentives. The pre-incentive price shows the actual installed scope; the net figure helps with your budget. Keep the two separate so a program change does not make the project appear less affordable than it really is.
A geothermal project often makes the strongest case for homeowners planning a long ownership period, particularly when the home needs both heating and cooling equipment replaced and the property supports a reasonably straightforward loop installation. It can also be attractive during new construction or a major renovation, when excavation, electrical work, and distribution-system changes may already be part of the project.
It may be less compelling for a homeowner who expects to move soon, has an unusually difficult drilling site, has limited budget flexibility, or has recently installed efficient conventional HVAC equipment. In those cases, an air-source heat pump, targeted weatherization, duct improvements, or a staged HVAC replacement may produce a better balance of cost and benefit.
| Situation | Geothermal May Be a Strong Fit If | Consider an Alternative If |
|---|---|---|
| Existing HVAC is near end of life | Both heating and cooling systems need replacement and the site supports loop work | Only one component needs minor repair or replacement |
| Long-term ownership | You expect to remain in the home long enough to benefit from lower operating costs and system longevity | You expect to sell soon and cannot recover the investment through comfort or resale value |
| Property layout | There is usable land or practical drill-rig access | Access, utilities, landscaping, or geology make loop installation unusually complex |
| Home efficiency | Insulation, air sealing, ducts, and controls are addressed as part of the plan | Major envelope problems remain unresolved and are driving the heating load |
| Budget | You can fund the larger initial project and have verified applicable incentives | The higher capital cost would prevent needed repairs or create financial strain |
Usually, yes. Both systems require indoor equipment and installation labor, but a ground-source system also requires a buried loop field. That site work is the main reason ground source heat pump cost is typically higher at installation.
Possibly, if the ducts are properly sized, reasonably airtight, and in good condition. A contractor should evaluate airflow, return-air capacity, insulation, and room-by-room comfort before promising that the existing duct system is adequate.
The schedule depends on permitting, weather, crew availability, loop type, site access, and the amount of indoor HVAC work required. Drilling or excavation and restoration add steps that are not part of a typical equipment-only replacement, so ask for a project schedule tied to the proposed scope.
A properly designed ground-source system can heat homes in cold climates because it exchanges heat with the ground rather than outdoor winter air. The design must still account for the home’s peak heating load, loop capacity, distribution system, and any planned auxiliary heat.
No. The heat pump and circulation equipment use electricity, and some homes may use supplemental heat during certain conditions. The goal is to reduce energy use and provide efficient heating and cooling, not to eliminate utility costs.
The underground loop is generally intended to be a long-lived part of the system, while indoor mechanical equipment has a different service life. Ask the installer about the loop material, installation method, pressure testing, documentation, and warranty so you understand what is protected.
The best way to judge ground source heat pump cost is to obtain detailed proposals based on a load calculation and a real assessment of the property. Compare loop design, included site work, electrical and distribution upgrades, incentives, and projected operating assumptions alongside the contract price. A geothermal system can be a sound long-term investment for the right home, but the value comes from a well-designed installation rather than the equipment label alone.
